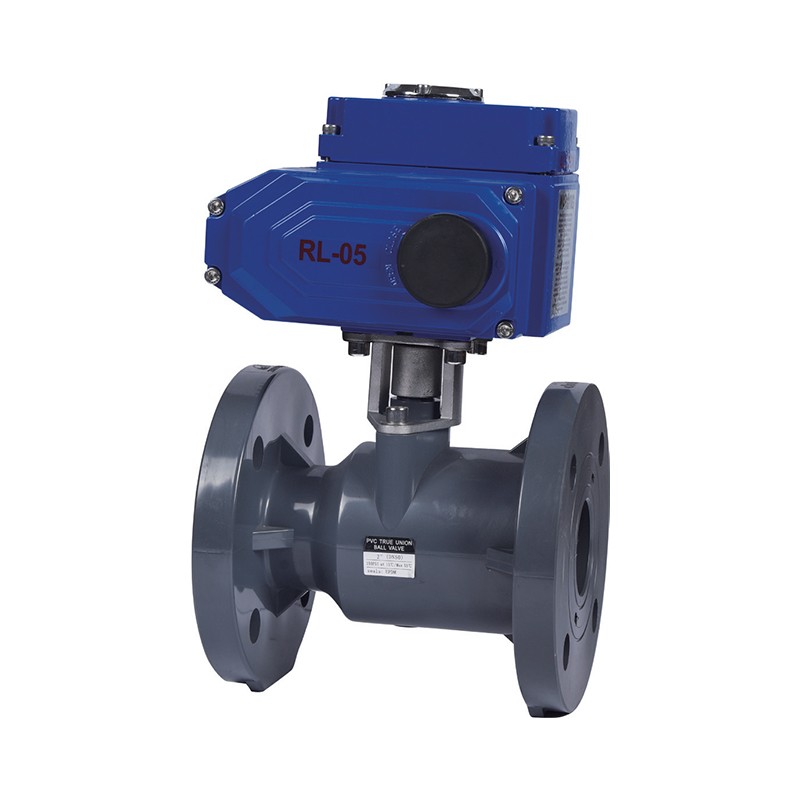

SCH8O/DIN UPVC/CPVC Electric Flange Ball Valve

SCH8O/DIN UPVC/CPVC Electric Flange Ball Valve

The defining feature of the electric flange ball valve is that its closure component (the ball) rotates around the stem’s axis, typically enabling valve opening or closing through a 90° rotation. It boasts sealing performance, high flow capacity, low flow resistance, simple structure, easy maintenance, and long service life. The valve body’s passage is of the same diameter as the connected pipeline, allowing the medium to flow through almost without loss. Therefore, it is often used in applications requiring stringent sealing, such as controlling gases, liquids, steam, and media containing fibrous impurities. electric flange ball valves are widely applied in industries like petroleum, chemicals, metallurgy, light industry, papermaking, power plants, and refrigeration. Particularly, they are commonly used as emergency shut-off valves in oil depots, chemical facilities, and gas tank pipelines. In emergencies, such as fires caused by oil or hazardous material leaks to power outages, the electric flange ball valve automatically shuts off without manual operation, effectively preventing secondary accidents, reducing property damage, and safeguarding personnel safety.

Neem contact met ons op
  • SCH8O/DIN UPVC/CPVC Electric Flange Ball Valve
Vorig：SCH8O/DIN UPVC/CPVC Pneumatic Butterfly Valve
Volgende：SCH8O/DIN UPVC/CPVC Pneumatic Flange Ball Valve
parameter sollicitatie Technische normen

  • (1) Material: UPVC, CPVC
    (2) Size: 2"-12", DN50-DN300, dn63-dn315
    (3) Standards: ANSI, DIN
    (4) Connection: flange
    (5) Work pressure: 150PSI, 1.0MPa
    (6) Operating temperature: UPVC(-10°C-60°C), CPVC(-10°C-90°C)
    (7) Body color: UPVC (dark gray), CPVC (light gray)

    SIZE/NOM.

    dn32

    dn40

    dn50

    dn63

    dn75

    dn90

    dn110

    dn140

    dn160

    (DN25)

    (DN32)

    (DN40)

    (DN50)

    (DN65)

    (DN80)

    (DN100)

    (DN125)

    (DN150)

    (1")

    (1-1/4")

    (1-1/2")

    (2")

    		(2-1/2")

    (3")

    (4")

    (5")

    (6")

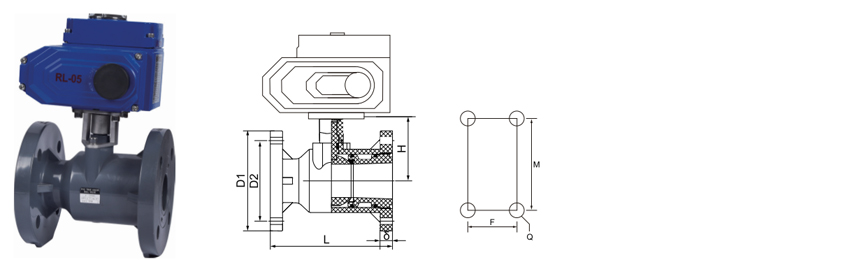

    D1

    115

    140

    145

    165

    180

    195

    220

    250

    285

    D2

    DIN

    85

    100

    110

    125

    145

    160

    180

    210

    240

    ANSI

    79

    89

    98

    121

    140

    152

    191

    216

    241

    JIS

    42.5

    48.5

    61

    73

    90

    105

    132

    158

    186

    N-Φ

    DIN

    4-Φ14

    4-Φ18

    4-Φ18

    4-Φ18

    4-Φ18

    8-Φ18

    8-Φ18

    8-Φ18

    8-Φ18

    ANSI

    4-Φ16

    4-Φ16

    4-Φ16

    4-Φ19

    4-Φ19

    4-Φ19

    4-Φ19

    8-Φ22

    8-Φ22

    JIS

    4-Φ19

    4-Φ19

    4-Φ19

    4-Φ19

    4-Φ19

    8-Φ19

    8-Φ19

    8-Φ23

    8-Φ23

    δ

    16

    18

    18

    20

    20

    25

    25

    27

    29

    F

    -

    -

    -

    -

    45

    45

    49

    49

    49

    M

    40

    52

    52

    70

    84

    84

    121

    121

    121

    Q

    2×M6

    2×M8

    2×M8

    2×M8

    4×M10

    4×M10

    4×M10

    4×M10

    4×M10

    Torque (N ·M)

    4

    6

    8

    12

    18

    26

    35

    Electric actuator specifications

    Ball valve

    Model

    Maximum output torque

    Action time 90°

    Output shaft

    Motor

    Rated current

    N·M

    Special

    Standard

    mm

    W

    AC

    220V/A

    AC

    380V/A

    DC

    24V/A

    dn20-dn50

    RL003

    30

    5-10

    15

    11*11

    AC20

    DC2

    0.1

    0.05

    0.2

    dn63-dn75

    RL005

    50

    5-15

    30

    14*14

    15

    0.15

    0.1

    2

    dn90

    RL010

    100

    15/30/60

    30

    17*17

    31

    0.28

    0.19

    2.5

    dn110

    RL015

    150

    15/30/60

    40

    17*17

    50

    0.5

    0.22

    5

    dn140

    RL020

    200

    5/15/90

    40

    22*22

    71

    0.6

    0.25

    8.5

    dn160

    RL050

    400

    5/15/90

    40

    22*22

    118

    1

    0.5

    8.5

SCH80 / DIN · ELECTRIC · FLANGED
UPVC / CPVC Electric Flange Ball Valve
On-off · Modulating · Full port · Flanged ends · ISO 5211
The SCH80/DIN UPVC/CPVC Electric Flange Ball Valve is an automated flow control device engineered for remote on-off or modulating service in corrosive and high-purity fluid systems requiring flanged connections. Manufactured to ASTM SCH80 and DIN standards, this valve integrates an electric actuator with a flanged full-port ball valve body. The actuator is available in on-off (with limit switches) or modulating (with 4–20 mA positioner) configurations, providing precise control for process automation. The flanged ends comply with DIN PN10/PN16 or ANSI Class 150 drilling patterns, enabling direct integration into existing flanged piping systems without adapters. PTFE seats and seals deliver bubble-tight shut-off. The actuator mounting follows ISO 5211 standards. This valve is widely used in automated process control, chemical dosing, water treatment, and industrial manufacturing where electric actuation is preferred over pneumatic systems.
DN15–DN100 Size range
PN10–PN16 Pressure rating
–20°C to 93°C CPVC range
ISO 5211 Mounting pad
Flanged Connections
DIN PN10/PN16 or ANSI Class 150 flanges provide secure, leak-proof integration into existing piping systems without additional adapters.
Electric Actuation
On-off or modulating electric actuators enable remote control, process automation, and precise positioning without pneumatic supply.
Bubble-Tight Shut-Off
PTFE seats provide a reliable seal against the chrome-plated or solid CPVC ball, ensuring zero leakage across the full pressure range.
Chemical Resistance
UPVC and CPVC bodies resist acids, bases, and salts. CPVC extends service to 93°C for hot corrosive media.
Valve Specifications
Body UPVC · CPVC
Ball Chrome-plated brass · Solid CPVC
Seats PTFE · EPDM (optional)
Flange standard DIN PN10/PN16 · ANSI Class 150
Face-to-face DIN EN 558 Series 1
Standards ASTM D2467 · DIN 8061/8062 · ISO 16139
Actuator Data
Type On-off · Modulating
Supply voltage 24V · 110V · 230V AC/DC
Control signal On-off (limit switches) · 4–20 mA (modulating)
Mounting ISO 5211 · Direct mount
Protection IP65 · IP67 (optional)
Actuator sizing depends on valve torque and supply voltage. Consult factory for selection.
Application Areas
Chemical Automated acid dosing · Reactor feed · Transfer lines
Semiconductor UPW distribution · Chemical delivery · Wet bench
Energy Battery electrolyte · Cooling water · Solar etching
Water Wastewater · RO permeate · Desalination · Discharge
Pharma DI water loops · CIP systems · Sanitary lines
Automotive Paint circulation · Parts washing · Coolant
Installation Guidelines
  • Flange connections: Use full-face EPDM or PTFE gaskets. Torque bolts evenly in cross pattern to 15–20 Nm.
  • Actuator mounting: Ensure ISO 5211 mounting pad alignment. Use correct coupling and bracket.
  • Electrical connections: Verify voltage and wiring. Use conduit for protection. Ground actuator properly.
  • Orientation: Install with actuator in accessible position. For horizontal lines, stem should be vertical.
  • Control signal: For modulating valves, verify 4–20 mA loop wiring and polarity.
  • Testing: Cycle valve manually and electrically before placing in service.
Critical Restrictions
  • Temperature: UPVC 60°C max · CPVC 93°C max. Do not exceed seat and gasket ratings.
  • Supply voltage: Must match actuator rating. Voltage fluctuations may affect performance.
  • Not rated for steam service. Avoid rapid thermal cycling and pressure surges.
  • Do not use with concentrated nitric acid (>15%) in UPVC bodies.
  • Flange bolts: Do not overtighten — cracking risk above 22 Nm for DN80 .
  • UV exposure: Use UV-stabilized material or apply protective coating.
  • Actuator storage: Protect from moisture and debris. Store in clean, dry area.
Frequently Asked Questions
What flange standards are available?
The valve is available with DIN PN10/PN16 flanges (per DIN 2501) or ANSI Class 150 flanges. DIN flanges are standard for European and metric piping systems. ANSI flanges are available for North American and imperial systems. Specify the flange standard when ordering.
What is the difference between on-off and modulating actuators?
On-off actuators provide open or closed position only, controlled by a switch signal. Modulating actuators accept a continuous 4–20 mA signal and position the valve at any point between fully open and fully closed, enabling precise flow control.
What voltage options are available?
Actuators are available in 24V AC/DC, 110V AC, and 230V AC configurations. Select based on your control system and available power supply. 24V is common for PLC and DCS systems; 110V/230V are used for direct line power.
What protection rating is provided?
Standard actuators are IP65 rated, providing dust-tight and water-jet protection. IP67 rating is available for submersion resistance. Outdoor installations should use IP65 or higher with appropriate cable glands.
Can this valve be used for throttling control?
Yes, with a modulating actuator and 4–20 mA positioner. The electric actuator provides precise positioning, enabling accurate flow control. Throttling service may reduce seat life compared to on-off service.
These electric flanged ball valves serve chemical, metallurgical, photovoltaic, nuclear, lithium, semiconductor, food, pharmaceutical, automotive, and water treatment industries — handling acids, alkalis, ultrapure water, potable water, electronic grade water, and industrial wastewater.
